Features

Storage Ring Status

View live storage ring parameters including beam current, lifetime, top-up state, injection operation, fill pattern, scheduled and actual operating modes, and operator messages from the Machine Control Room.

_images/aps_status_machine_01.png

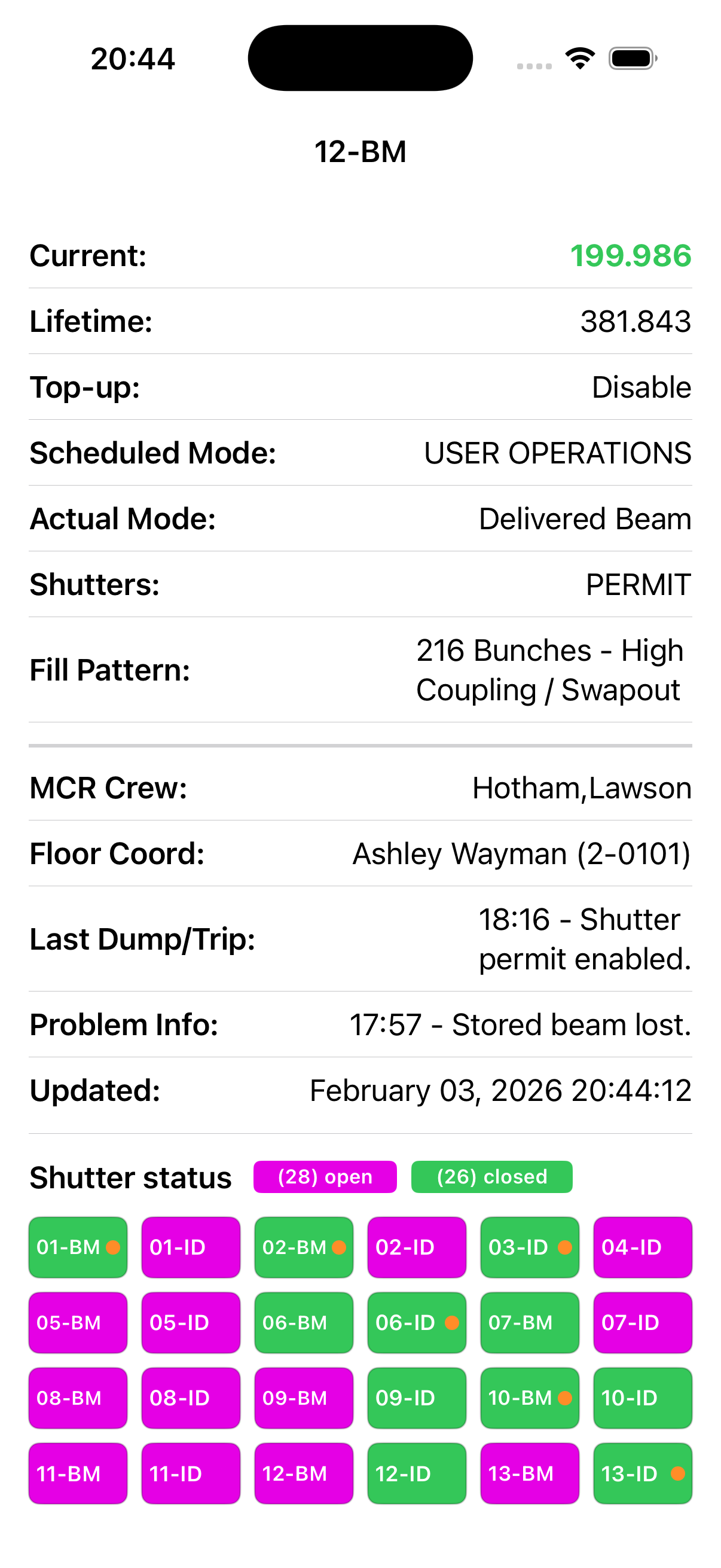

Shutter Status

Monitor all APS beamline front-end shutters at a glance. Color-coded indicators show each shutter as open (magenta) or closed (green), with beam-ready dots reflecting the Personnel Safety System (PSS) Station A search state.

_images/aps_status_02.png

Beamline Views

Select up to four beamlines for quick-access status pages. Currently supported: 02-BM (Micro-tomography), 07-BM, 12-BM, and 32-ID.

Accelerator Systems

Choose up to four accelerator monitoring pages:

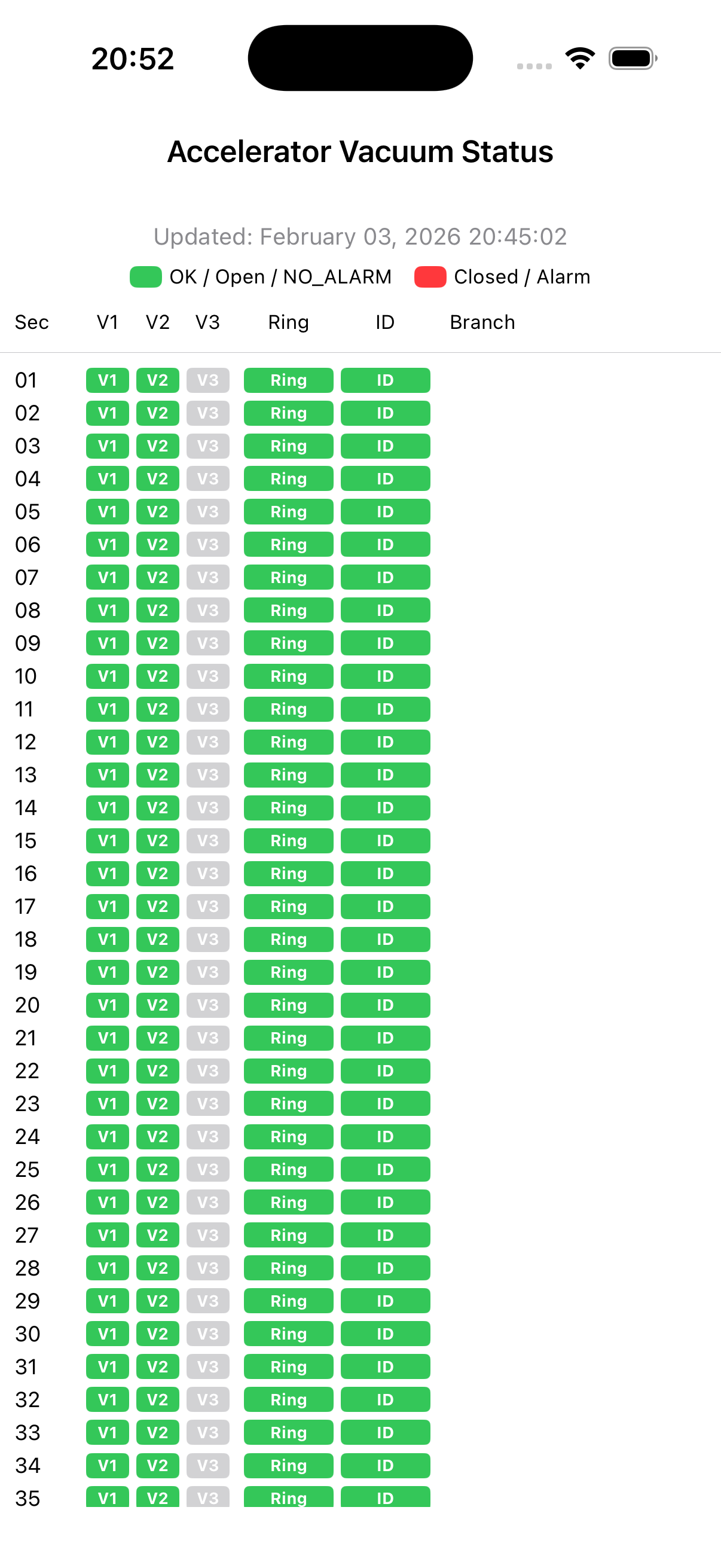

  • Vacuum system — sector-by-sector valve and gauge status across all 40 APS sectors

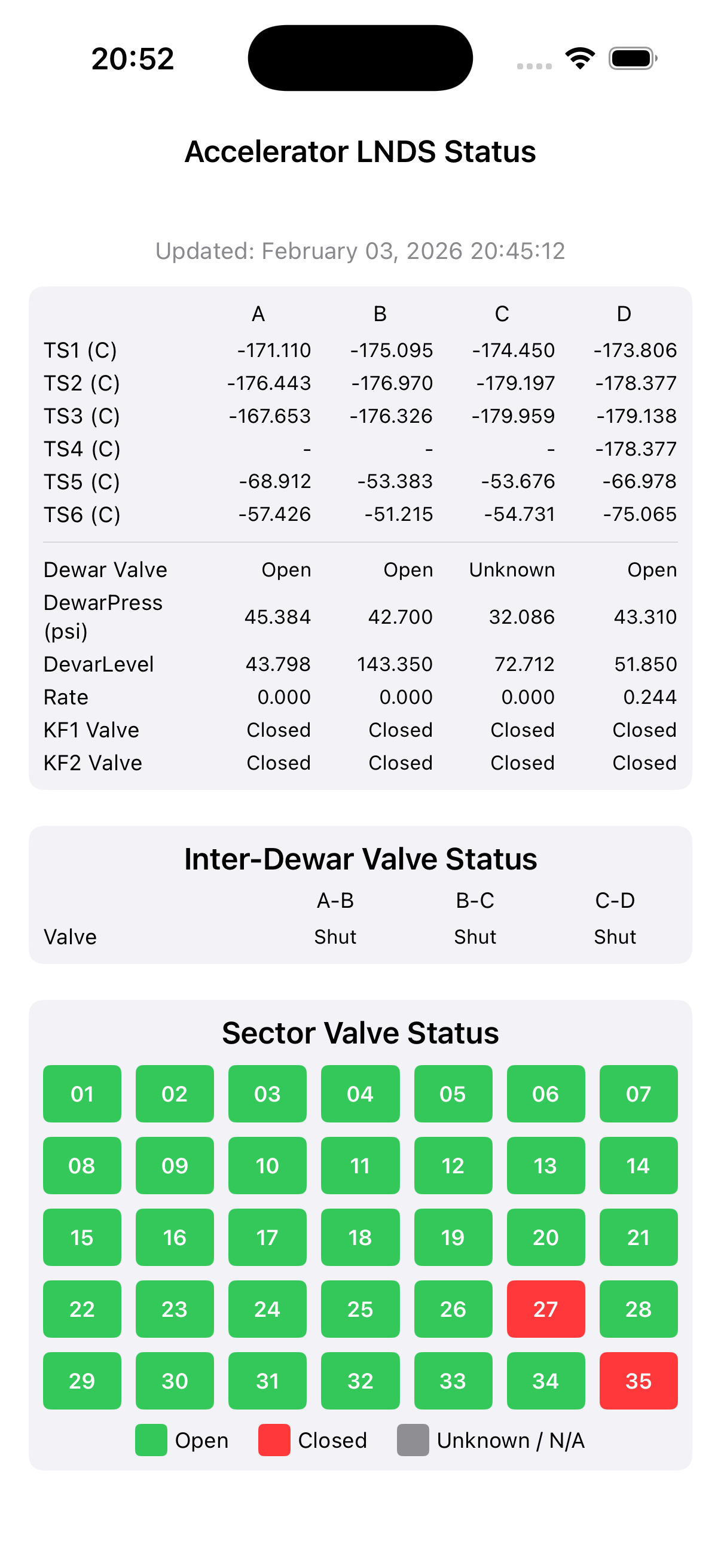

  • Liquid Nitrogen Dewar System (LNDS) — dewar temperatures, levels, and valve states

  • RF and Klystron data — RF system summary and klystron status

  • Power supply status — storage ring power supply summary and detail

_images/aps_status_machine_02.png

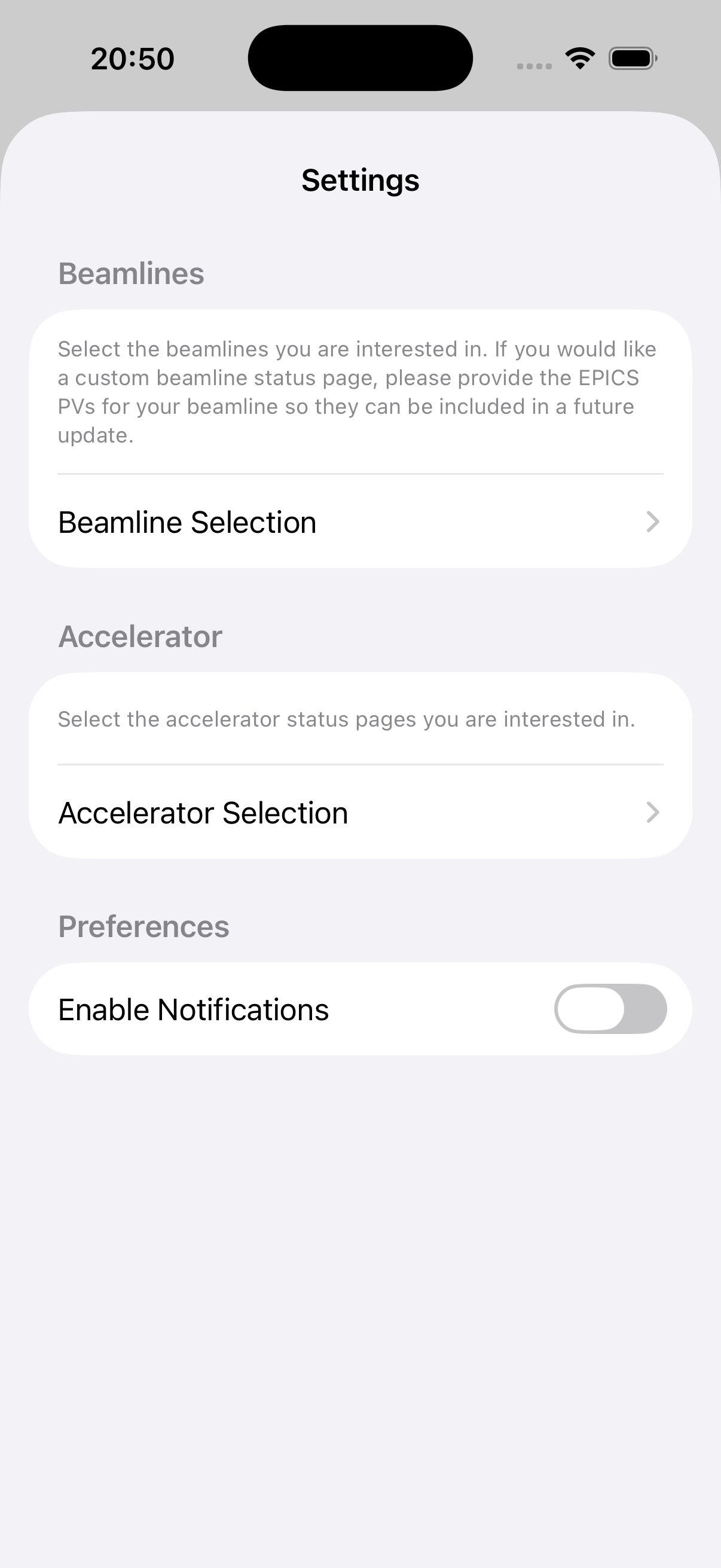

Customizable Layout

Select the beamlines and accelerator pages most relevant to your work. Preferences are saved and restored between sessions.

_images/aps_status_settings_01.png
